A-A-52470 Filter, Fluid, Pressure And Filter Element, Fluid, Pressure-Automotive Fuel (45 Gph Filtration)This CID covers requirements for a filter assembly with a coarse filtration element and the replacement element for use in the fuel system of internal combustion engines and accessories.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9




A-A-52470A





Cross reference

PIN

Former MS part number

A52470-1

MS51088-1



NOTES:

1. Dimensions are in inches. Unless otherwise specified, tolerances are ±.015.

2. O.D. = outside diameter.

3. 3/8-24 UNF-2A, 1.75 inches long, grade 5, zinc plated steel. For replacement bolt use MS90726-65.

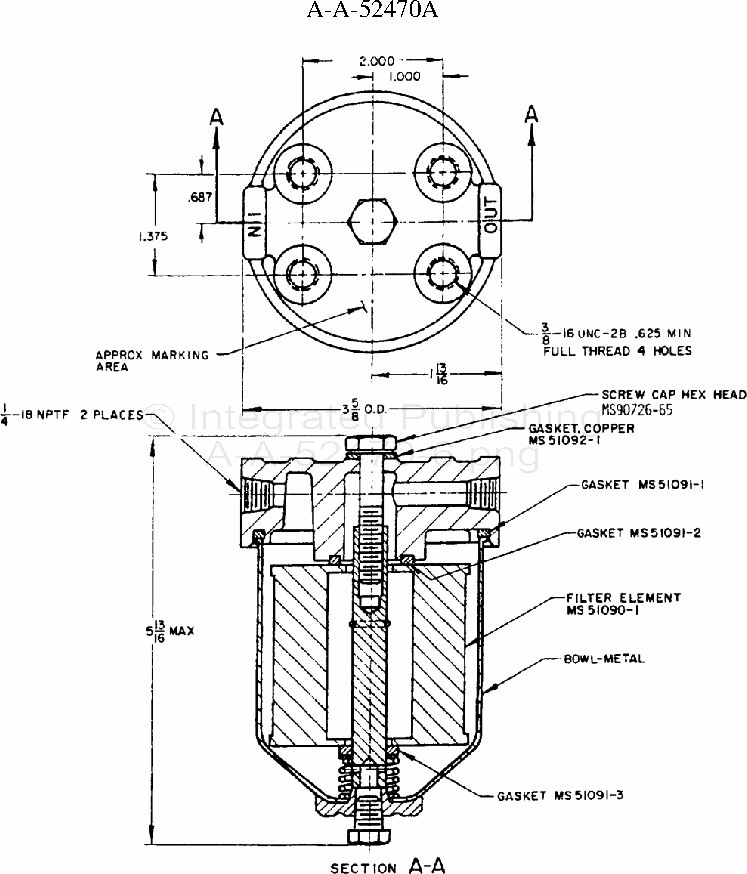

FIGURE 1. Filter, fluid, pressure.
