INCH-POUND MS35643D
20 April 2011
SUPERSEDING MS35643C
07 December 1967
DETAIL SPECIFICATION SHEET
GASKET: SYNTHETIC RUBBER, CAP, FUEL TANK
Inactive for new design after 22 January 1999.
This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet.
PIN |
A |
B |
C |
MS35643-1 |
3.531 (3-17/32) |
4.250 (4-1/4) |
0.125 (1/8) |
MS35643-2 |
2.891 ( 2-57/64) |
4.375 (4-3/8) |
0.063 (1/16) |
MS35643-3 |
1.375 (1-3/8) |
1.688 (1-11/16) |
0.125 (1/8) |
Inches |
mm |
Inches |
mm |
Inches |
mm |
3.531 |
89.69 |
4.250 |
107.95 |
0.125 |
3.18 |
2.890625 |
73.42 |
4.375 |
111.13 |
0.0625 |
1.59 |
1.375 |
34.93 |
1.6875 |
42.86 |
0.125 |
3.18 |
NOTES:
1. Dimensions are in inches. Tolerances are ± 1/64 on fractions, ± .015 on decimals.
2. Metric equivalents are given for information only.

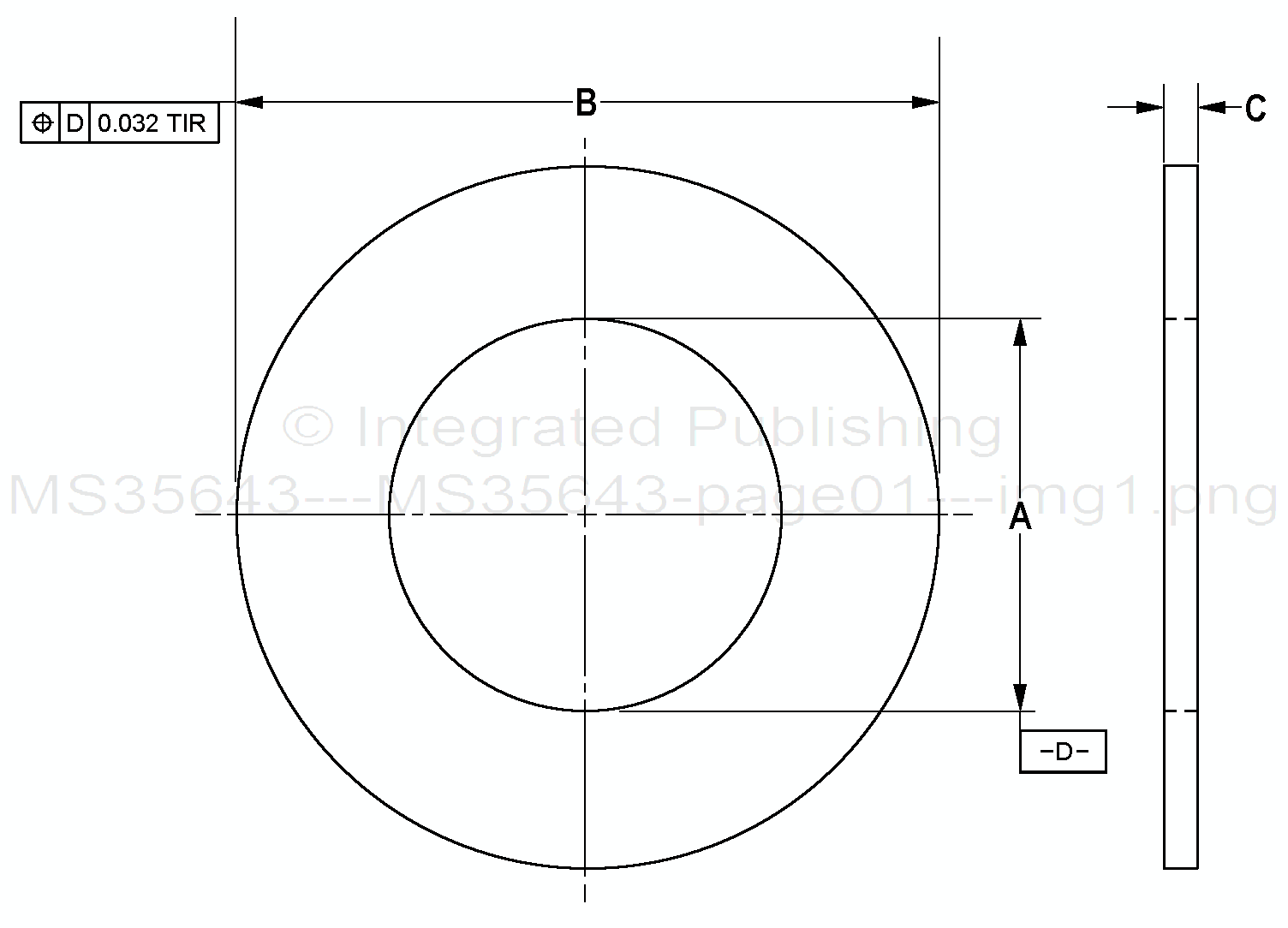

FIGURE 1. Gasket, synthetic rubber, cap, fuel tank.
ASMC N/A FSC 2910
For Parts Inquires call Parts Hangar, Inc (727) 493-0744
